Wallywhy200 Wide-Body Yacht: 200GT Interior Within Sub-24m Load Line

Architectural Concept and Volume Management

The Wallywhy200 represents a calculated departure from traditional semi-displacement yacht architecture, prioritizing internal volume within a compact footprint. While the vessel possesses a Length Overall (LOA) of 27.03 meters, its load line length remains under 24 meters, simplifying regulatory compliance and operational costs. The defining characteristic of this model is its wide-body hull design, which eliminates traditional side decks on the main level to maximize the beam’s utility. This engineering choice results in 200 Gross Tons (GT) of internal volume, a figure typically associated with vessels exceeding 33 meters. The naval architecture, developed by Laurent Giles, utilizes a high-freeboard design to support this volume while maintaining stability and seakeeping capabilities.

Structural Innovations and Layout

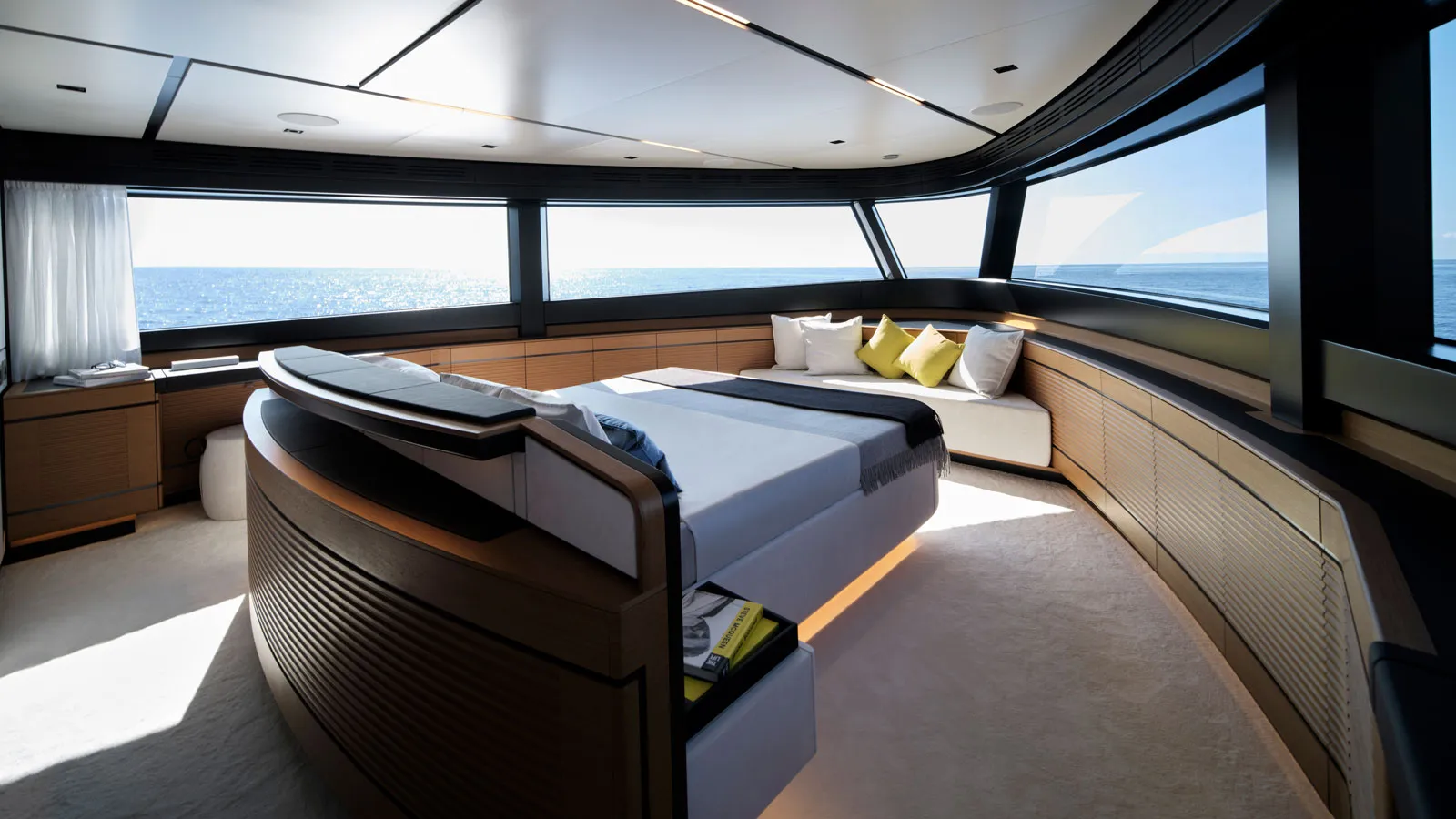

A critical component of the Wallywhy200’s design is the bow structure, which rises 4.7 meters above the waterline. This elevation accommodates the 37-square-meter owner’s suite on the main deck, a feature usually reserved for significantly larger superyachts. The suite benefits from a strip of glass running the perimeter, providing extensive visibility and natural light. Structurally, the vessel employs a central carbon fiber staircase that connects all three decks. This single-piece laminated element provides necessary structural rigidity, allowing for the removal of interior bulkheads. The result is an open-plan main salon measuring 61 square meters, offering uninterrupted sightlines and flexible configuration options.

Propulsion and Exterior Functionality

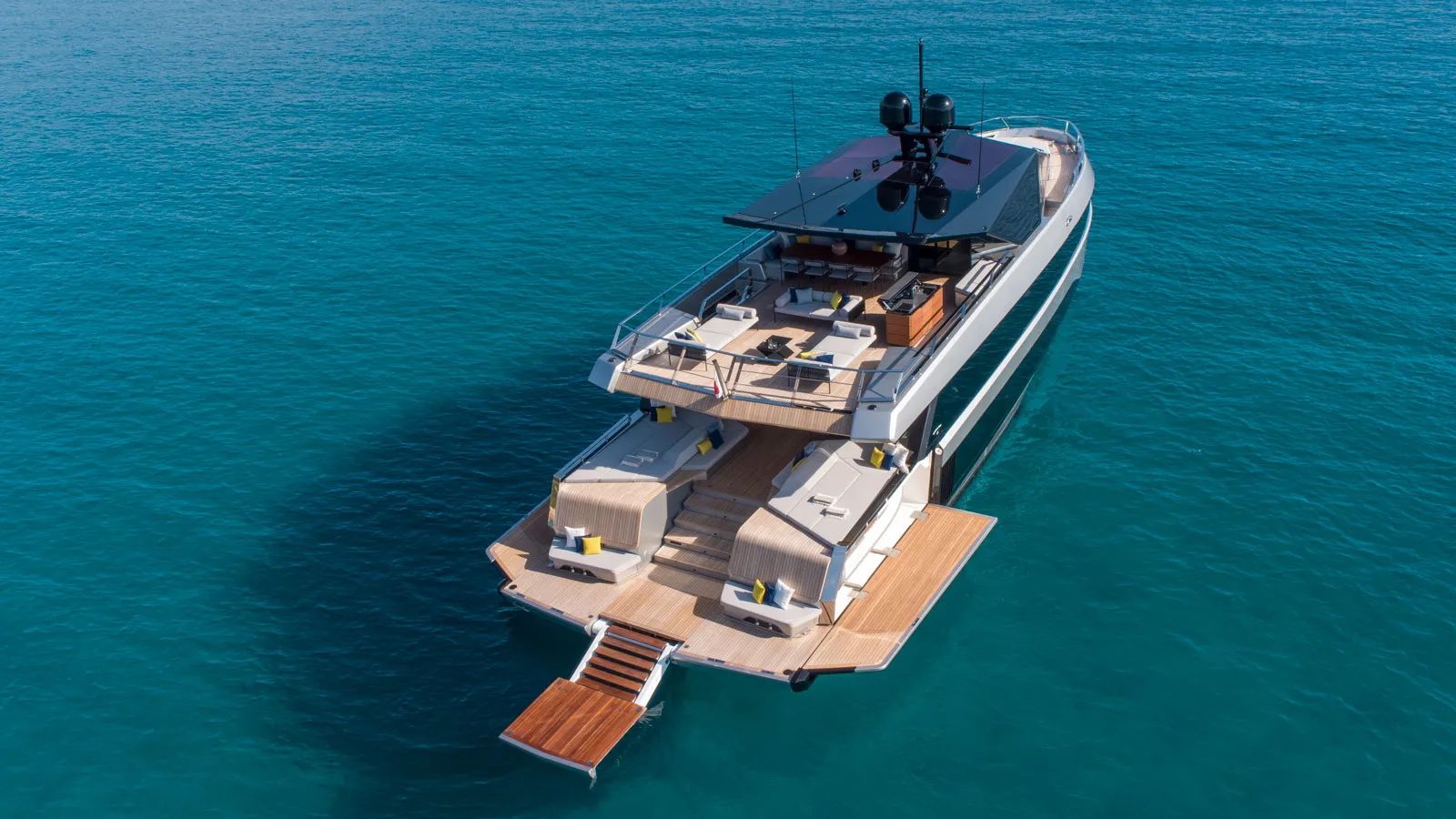

The propulsion system is engineered around efficiency and maneuverability, utilizing four Volvo Penta IPS1200 or optional IPS1350 engines. This configuration allows for a cruising speed of approximately 20 knots and a maximum speed of 23 knots. The IPS system’s compact nature frees up considerable space in the lower hull, which is reallocated to the crew quarters and guest accommodation. Externally, the vessel features folding bulwarks at the stern, expanding the beach club area to 32 square meters. This transformable space provides direct water access on three sides. Additionally, the vessel incorporates two concealed garages capable of housing a 4.15-meter tender and various water toys, optimizing storage without compromising the aesthetic profile.

Summary and Market Implications

The Wallywhy200 demonstrates how specialized naval architecture can overcome size constraints in the sub-30-meter category. By integrating a wide-body hull with a high bow and carbon fiber structural components, the design achieves a volume-to-length ratio that challenges existing market standards. For operators and owners, the vessel offers the living space of a displacement yacht with the operational flexibility of a smaller craft. This model highlights a growing industry trend towards maximizing gross tonnage within specific regulatory length brackets, prioritizing interior capacity and functional engineering over traditional exterior styling.
